1. Brief Introduction

GD32W515 Wi-Fi FOC Fan Control Solution operates the fan smoothly using sensorless vector algorithm with nonlinear magnetic chain observer, which can perform double closed-loop control of motor speed and bus current, enabling developers to quickly and easily use GD32MCU for FOC motor control applications.

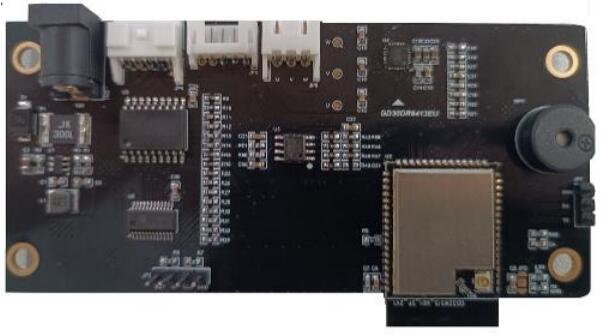

▲ GD32W515 Fan Control Board

2. Function Description

The power supply voltage of GD32W515 Wi-Fi FOC Fan Control Solution is 12V, and the rated current is 2A. Double closed-loop control regulating speed and current using the advanced FOC algorithm can reach speed as high as 1500rpm. Additionally, the matching Wi-Fi fan can run smoothly in different gear levels.

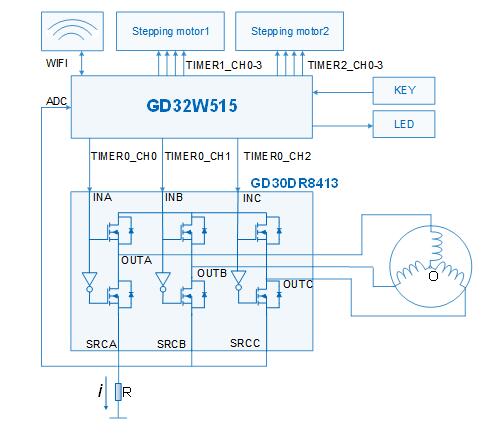

GD32W515 Wi-Fi FOC Fan Control Solution with highly integrated hardware, is equipped with advanced timer TIMER0 and general timers TIMER1/2, which can simultaneously control a PMSM and two stepping motors. Additionally, the fan can be controlled by buttons and Wi-Fi together.

3. Main Features

• Five modes including switch mode, wind speed adjustment mode, left and right shake mode, up and down shake mode, timing off mode

• Sensorless FOC algorithm based on nonlinear flux observer

• 1-Shunt current sampling mode

• Tailwind and headwind starting algorithm

• High-performance power driver GD30DR8413 with pre-drive function including 6 NMOS

• Support intelligent distribution network, Access Point (AP) distribution network and Over-the-Air (OTA) technology

4. Development Resources

GigaDevice can provide evaluation kits, user guides, hardware schematics, software code and other complete development materials. Please contact your local GigaDevice sales office or authorized representative for more details.

5. Typical Applications

Wi-Fi Fan, Smart Home, Property Renovation, AIoT, IIoT, etc.
