1. Brief Introduction
The BUCK circuit is a step-down circuit, which features an output voltage lower than the input voltage. By controlling the duty cycle of MOS tubes, the high voltage can be converted to a low voltage with high conversion efficiency.

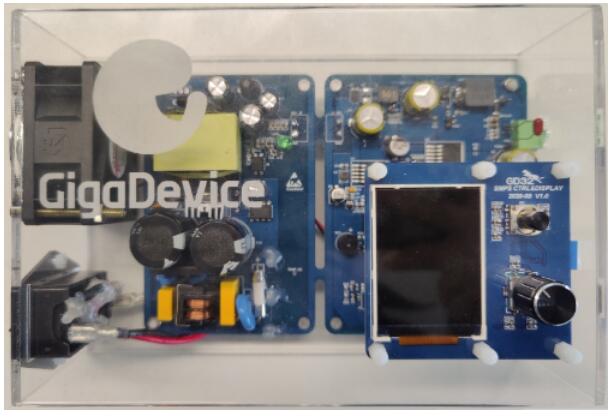

▲ GD32E503C-SMPS Demo Board
2. Function Description
The SMPS Demo board based on the GD32E503C MCU uses 220V mains power provided by a three-pin Pin socket. The demo board can set the output voltage and maximum current through the five-way switch and rotary encoder, and display the output voltage and current in real time through the 2.2" TFT LCD. The demo board provides peripheral resources such as SWD interface, USART debug port, Reset button, buzzer and cooling fan, which can realize protection functions such as overvoltage, undervoltage detection, overcurrent detection and overheat detection.

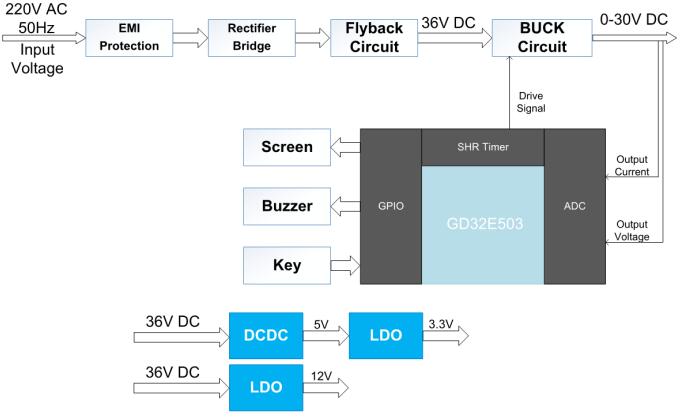

▲ System Block Diagram
3. Main Features
• BUCK topology
• SHRTIMER high precision PWM control
• Voltage range 0-30V, Current range 0-3A, Maximum power of 90W
• Voltage resolution 10mV, accuracy 0.3%, Vripple≤100mVp-p
• 2.2-inch LCD screen real-time display of output voltage, current, temperature and other parameters
• Protection circuit for overvoltage, undervoltage, overcurrent and overheat detection
4. Development Resources
GigaDevice can provide evaluation kits, user guides, hardware schematics, software code and other complete development materials. Please contact your local GigaDevice sales office or authorized representative for more details.
5. Typical Applications
Digital power supplies, outdoor power supplies, communication/server power modules, etc.
